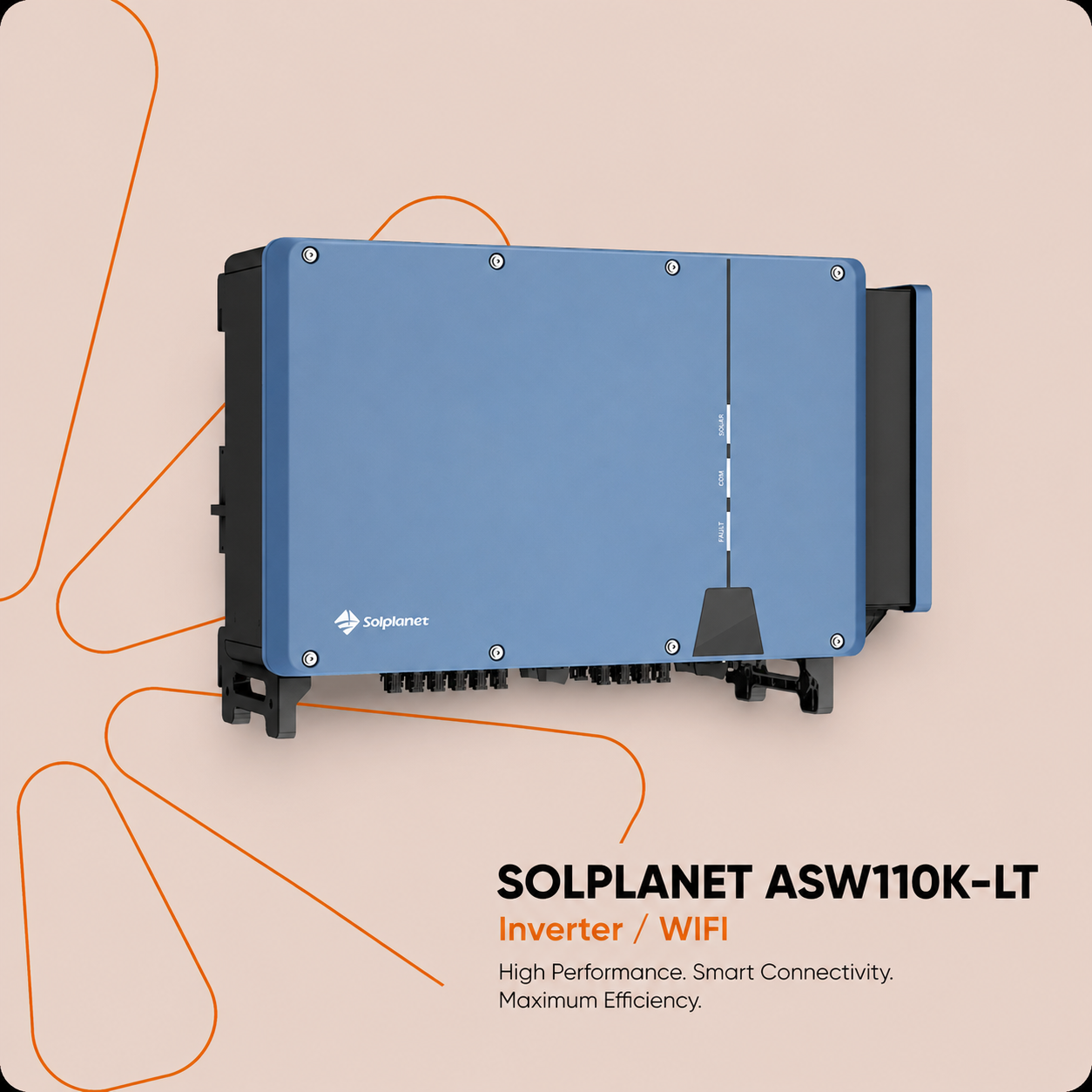

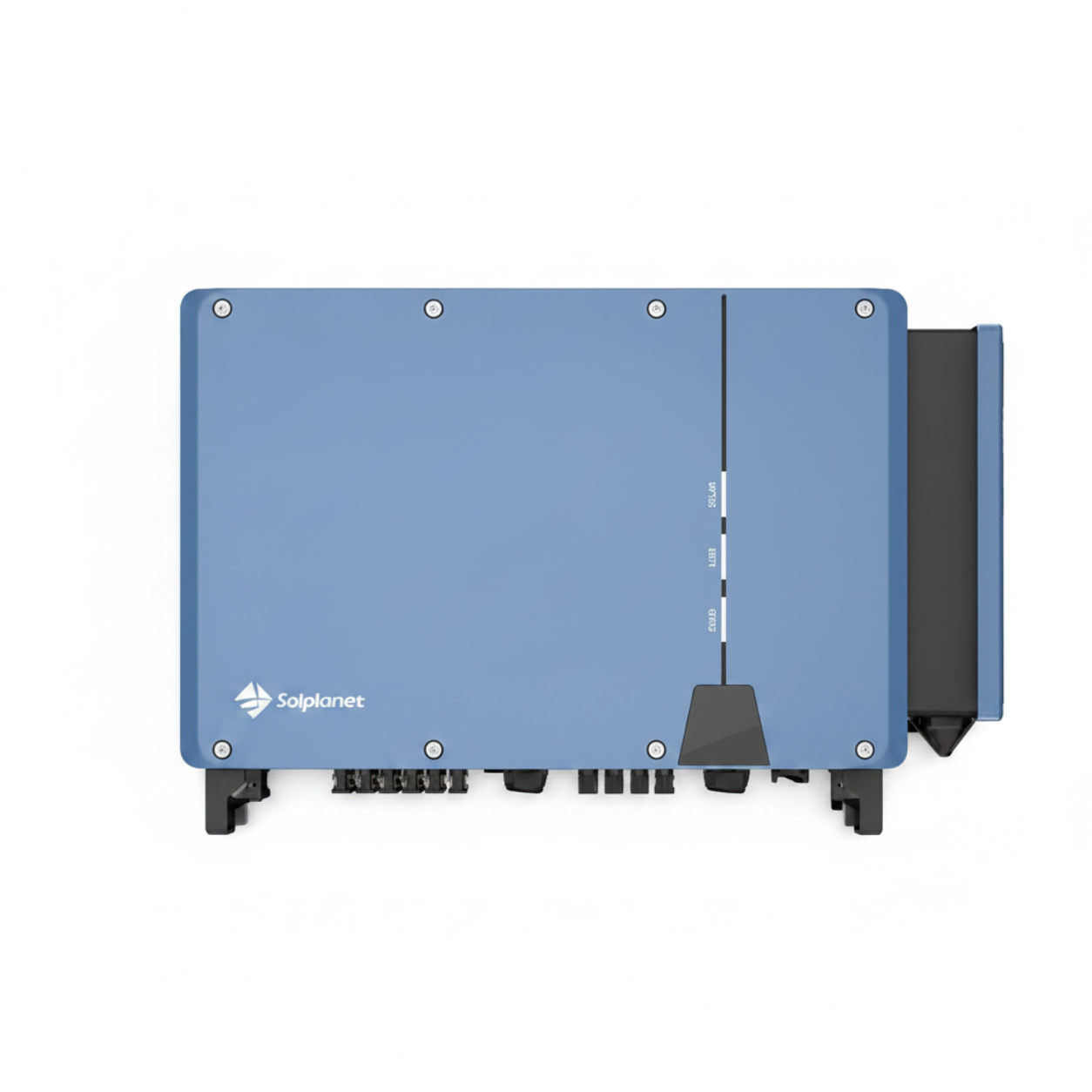

Solplanet ASW110K-LT - Inverter / WIFI
Item-No:
10300438
GTIN:
4262431422059
Manufacturer-No:
ASW110K-LT
Product-Weight:
86 kg
Shipping info:
Pallet / Heavy Freight (Spedition)
Regular price
€1.799,00
inc. VAT
Price excluding VAT
€1.499,17
excl. VAT
Couldn't load pickup availability
Solplanet ASW110K-LT - Inverter / WIFI
Product details
Caution
| Logistics Transport Category | Industrial/Utility-Scale Multi-Phase Grid-Tied Inverter Class |
| Dangerous Goods Description | Non-hazardous goods, compliant with heavy heavy-duty electrical transit safety norms |
| Integrated Safety Devices / Protection | Integrated DC switch, arc fault circuit interrupter (AFCI), & residual current monitoring unit |
| Overvoltage / Theft / Specific Feature Protection | Type II DC & Type II AC Surge Protective Devices (SPD) & secure encrypted app-access lock |
| Core Operational Range (Current/Voltage/Frequency) | 32A per MPPT input / 200V–1000V DC working range / 50Hz/60Hz automated frequency tracking |
| Net Product Weight (kg) | 86.00 kg |
| Packaging Material Type | Heavy Industrial Wooden Crate Base & Multi-Layer Double-Wall Corrugated Enclosure |
| Protection Degree Class | IP66 Complete Weather Proof Dust & High-Pressure Water Protection Rating |
Downloads
No downloads metafield linked to this product.
No downloads metafield linked to this product.
Technical details
| Maximum AC Output Power | 110.0 kW continuous three-phase active power generation |
| Maximum Input Current | 320.0A total (32.0A maximum input rating per individual MPPT channel) |
| DC Input Voltage Range | 200V minimal operating threshold up to 1100V absolute maximum string limit |
| Grid Connection Parameters | 3 / N / PE or 3 / PE, 230V / 400V multi-phase matching 50Hz/60Hz frequency |
| Manufacturer | AISWEI Technology (Solplanet) |
| Item Name | Solplanet ASW110K-LT Inverter with Wi-Fi |
| Category | Three-Phase Industrial Commercial String Inverter |
| Platform Support | Solplanet Cloud Portal Smart Monitoring App & pre-packaged Wi-Fi/LAN communication stick |
| Gross Weight | 98.50 kg (including heavy-duty heavy bracket rails, electrical terminal blocks, and transport reinforcement padding) |
| Box Dimensions | 1100 mm x 750 mm x 450 mm heavy industrial transport casing scale |
| Packaging Inclusions | Solplanet 110kW inverter unit, heavy wall rail mounting plate, Wi-Fi/LAN communication stick, AC/DC connection lugs, installation guide |
| Net Weight | 86.00 kg base hardware mass |
| Physical Dimensions | 980 mm (Width) x 640 mm (Height) x 345 mm (Depth) |
| Cooling Type | Smart forced air cooling architecture (intelligent high-durability internal speed fans) |
| Warranty Provider Name | Solplanet International Authorized Service and Technical Support Network |
