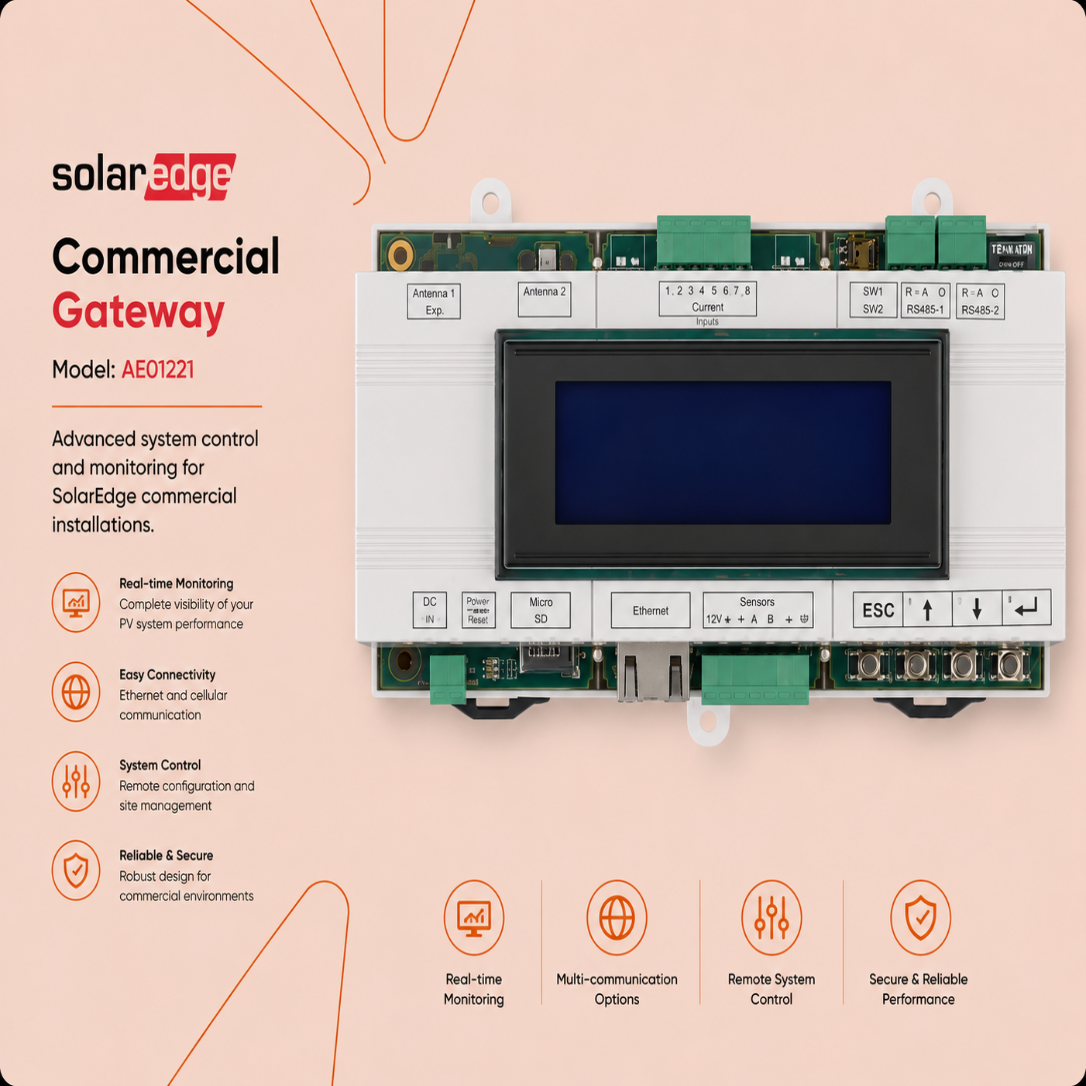

Solar Edge, Firefighter Gateway -Commercial Gateway, WIFI included, Cellular Supported - AE01221
Power your home with Watt100's smart solar inverters, engineered for maximum energy efficiency and long-term reliability. Experience seamless power management with high-performance technology designed to secure your sustainable future.
Regular price
€670,00
inc. VAT
High Efficiency
Weather Resistance
Long-term Guarantee
Couldn't load pickup availability
SolarEdge, Firefighter Gateway -Commercial Gateway, WIFI included, Cellular Supported - AE01221
Product details
Caution
| Logistics Transport Category | Standard Industrial Telecommunication and Safety Equipment |
| Dangerous Goods Description | Non-hazardous, solid-state commercial communication device with low voltage operational components |
| Integrated Safety Devices / Protection | Dual Fire Alarm Control Panel (FACP) Dry Contact Inputs, Reverse Polarity Input Voltage Protection |
| Overvoltage / Theft / Specific Feature Protection | Surge protection on power line inputs, automated SafeDC safety loop command delivery system |
| Core Operational Range (Current/Voltage/Frequency) | 9 Vdc to 14 Vdc Supply Input / Maximum 2W Power Consumption / 2.4 GHz Wi-Fi Bands |
| Net Product Weight (kg) | 0.5 kg |
| Packaging Material Type | Eco-friendly recyclable cardboard box containing anti-static bubble wrap protective shielding |
| Protection Degree Class | IP20 (Restricted to indoor-only, climate-controlled environments) |
Downloads
No downloads metafield linked to this product.
No downloads metafield linked to this product.
Technical details
| DC Power Supply Input Voltage Range | 9 Vdc to 14 Vdc |
| Maximum Power Consumption | Less than 2 W |
| Inverter Communication Interface | RS485 Multi-Drop Bus (Terminal Block) |
| Wireless Protocols Supported | Integrated local Wi-Fi, Pre-configured Cellular Modem expansion slot |
| Data Refresh Frequency | Real-time event logging pushed to cloud within seconds of trigger |
| Manufacturer | SolarEdge Technologies Ltd |
| Item Name | SolarEdge Commercial Firefighter Gateway with Wireless Connectivity |
| Category | Commercial PV Communication & Safety Control Hubs |
| Platform Support | SolarEdge SetApp, Monitoring Portal, and Local Modbus Telemetry |
| Gross Weight | 0.85 kg |
| Box Dimensions (Length x Width x Height) | 210 mm x 135 mm x 85 mm |
| Packaging Inclusions | 1x Firefighter Gateway Device, 1x DIN-Rail Power Supply Unit (100-240VAC Input), 1x Internal Wi-Fi Antenna, 1x RS485 Terminal Block Plug, 1x Hardware Mounting Guide |
| Physical Dimensions | 161.6 mm Length x 90 mm Width x 62 mm Height |
| Net Weight | 0.5 kg |
| Cooling Type | Passive natural convection cooling (Fanless silent design) |
| Warranty Provider Name | SolarEdge Technologies Hardware Warranty Division |
| Standard Duration | 5 Years (Standard manufacturer global limited accessory warranty) |
