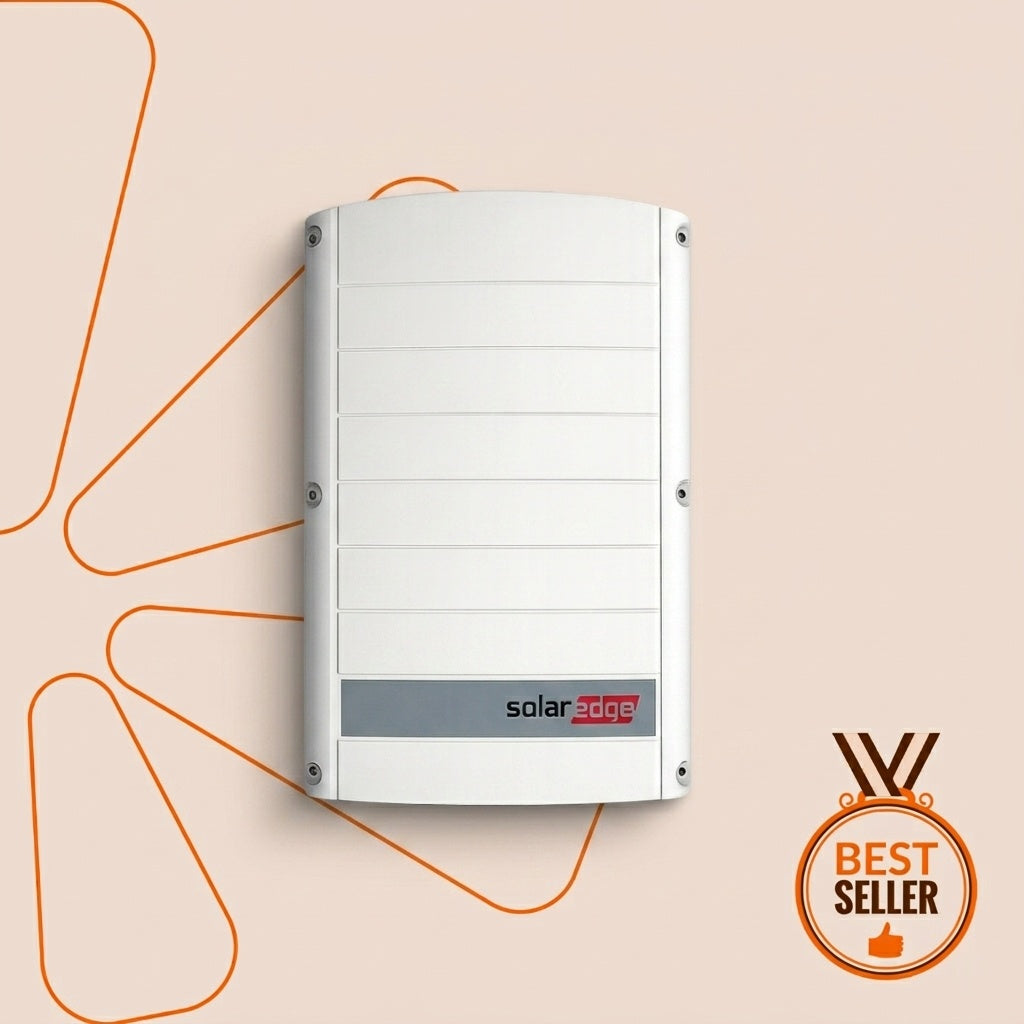

SolarEdge SE9K 9 kW 3-phase solar inverter
Couldn't load pickup availability
The SolarEdge SE9K is a powerful 9 kW 3-phase solar inverter designed for SolarEdge systems with optimization. It is well suited for installations where high performance, reliable operation and a system with good production transparency are desired
Modellen bruges ofte i større villa-anlæg eller mindre erhvervsløsninger – særligt hvor man ønsker SolarEdge-universets monitorering og optimering som en del af den samlede løsning
- 3-phase 9 KW – strong solution for larger installations
- For SolarEdge optimization – part of an optimized system
- Monitoring – detailed insight into performance (depends on setup)
- Suitable for commercial and larger private installations
Note: If you want to display technical data on the page, it is recommended to put them as structured specifications (metafields) so that they are always correct per SKU
Product details
Caution
| Logistics Transport Category | Industrial Electronic Inverter |
| Dangerous Goods Description | Non-Hazardous |
| Integrated Safety Devices / Protection | Arc Fault Circuit Interrupter (AFCI), SPD |
| Overvoltage / Theft / Specific Feature Protection | Integrated DC/AC Surge Protection (Type 2) |
| Core Operational Range (Current/Voltage/Frequency) | 3-Phase, 400V / 50-60Hz |
| Net Product Weight (kg) | 17.0 kg |
| Packaging Material Type | Reinforced Industrial Cardboard |
| Protection Degree Class | IP65 |
Technical details
| Max. DC Power | 12.15 kW (DC/AC ratio 1.35) |
| Rated AC Power | 9.0 kW |
| AC Output Voltage | 230/400V |
| Max. Efficiency | 98% |
| Communication Interfaces | Ethernet, RS485, Wi-Fi (optional) |
| Manufacturer | SolarEdge Technologies |
| Item Name | SE9K 3-Phase Inverter |
| Category | Three-Phase Grid-Tied Inverter |
| Platform support | SolarEdge Monitoring Portal / SetApp |
| Gross weight | 19.5 kg |
| Box dimensions | 600mm x 400mm x 300mm |
| Inclusions | Inverter unit, mounting bracket, AC/DC connectors, manual |
| Net weight | 17.0 kg |
| Physical dimensions | 540mm x 315mm x 260mm |
| Cooling type | Natural Convection (Fan-less) |
| Warranty provider | SolarEdge Technologies |
| Standard duration | 12 Years (Extendable to 20/25 years) |
