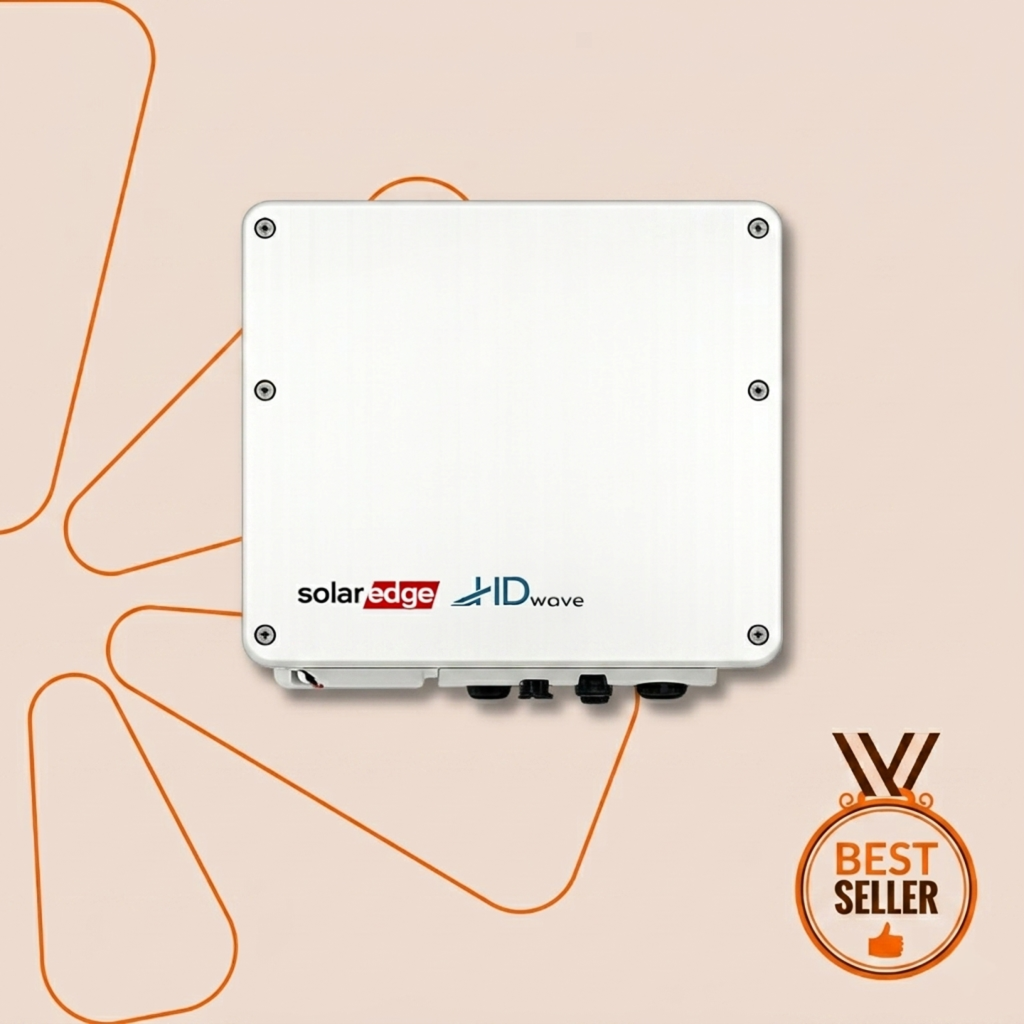

SolarEdge SE3680H HD-Wave solar inverter
Couldn't load pickup availability
The SolarEdge SE3680H is a compact HD-Wave solar inverter designed for SolarEdge systems with optimization. It is popular for residential and commercial installations where a high-performance solution, clear system monitoring and a complete platform for servicing and troubleshooting are desired
SE3680H is a strong choice for installations where efficient operation and easy access to performance data are prioritized – for both the installer and the end customer
- Designed for SolarEdge (used with SolarEdge optimization)
- Compact and lightweight – neat installation and simple handling
- Monitoring – provides a clear overview of the system's performance
- Suitable for villas and smaller systems
Note: To ensure a 100% match, it is recommended to specify the exact variant/version in specification fields (metafields) if you have multiple sub-models in stock
Product details
Caution
| Logistics Transport Category | Standard Photovoltaic Inverter Freight |
| Dangerous Goods Description | Non-Hazardous Commercial Electronic Equipment |
| Integrated Safety Devices / Protection | Integrated Arc Fault Protection (AFCI), Ground Fault Isolation, Rapid Shutdown (SafeDC™) |
| Overvoltage | Fixed Voltage System, DC Reverse Polarity Protection, Built-in Overvoltage Protection |
| Core Operational Range | 220 / 230 V (50/60 Hz) |
| Net Product Weight (kg) | 11.9 kg |
Downloads
No Danish downloads available.
Technical details
| Rated AC Power Output | 3,680 W |
| Max. AC Apparent Power | 3,680 VA |
| Max. Input DC Voltage | 480 V |
| Nominal DC Input Voltage | 380 V |
| Max. Input Current | 10.5 A |
| Reverse-Polarity Protection | Yes |
| Ground-Fault Isolation Detection | 700kΩ Sensitivity |
| Max. Output Current | 16 A |
| AC Output Voltage (Nominal) | 220 V / 230 V (180 V - 264 V Range) |
| AC Grid Frequency | 50 Hz / 60 Hz (± 5 Hz) |
| Max. Efficiency | 99.2% |
| European Weighted Efficiency | 98.8% |
| IP Protection Rating | IP65 / NEMA 3R |
| Operating Ambient Temperature | -40°C to +60°C |
| Communication Interfaces | RS485, Ethernet, Wi-Fi (Optional), Cellular (Optional), ZigBee (Optional) |
| Manufacturer | SolarEdge Technologies Ltd. |
| Brand | SolarEdge |
| Model Number | SE3680H |
| Technology | HD-Wave High Frequency Digital Switching Topology |
| Product Type | Optimizer-Based String Inverter |
| Application | Residential Roof PV Systems with SolarEdge Optimizers |
| Gross Weight | 10.0 kg |
| Net Weight | 7.8 kg |
| Packaging Type | Compact High-Density Cardboard Box with Protective Molded Fiber Inserts |
| Package Contents | SE3680H Inverter Unit, Wall Mounting Bracket, Safety Switch / DC Connections Kit, Quick Start Installation Guide |
| Packaging Material | 100% Recyclable Corrugated Board & Cardboard Fill |
| Height | 280 mm |
| Width | 370 mm |
| Depth | 142 mm |
| Net Weight | 7.8 kg |
| Mounting Type | Wall Mount Bracket Included |
| Cooling Clearance Requirements | Top: 200 mm | Bottom: 200 mm | Left: 100 mm | Right: 100 mm |
| Warranty Provider | SolarEdge Technologies Ltd. |
| Standard Warranty Period | 12 Years Standard Warranty |
| Extended Warranty Availability | Extendable to 20 or 25 Years upon request/registration |
| Warranty Notes | Covers materials and manufacturing defaults. Requires system connection to SolarEdge Monitoring Platform for optimal support. |
