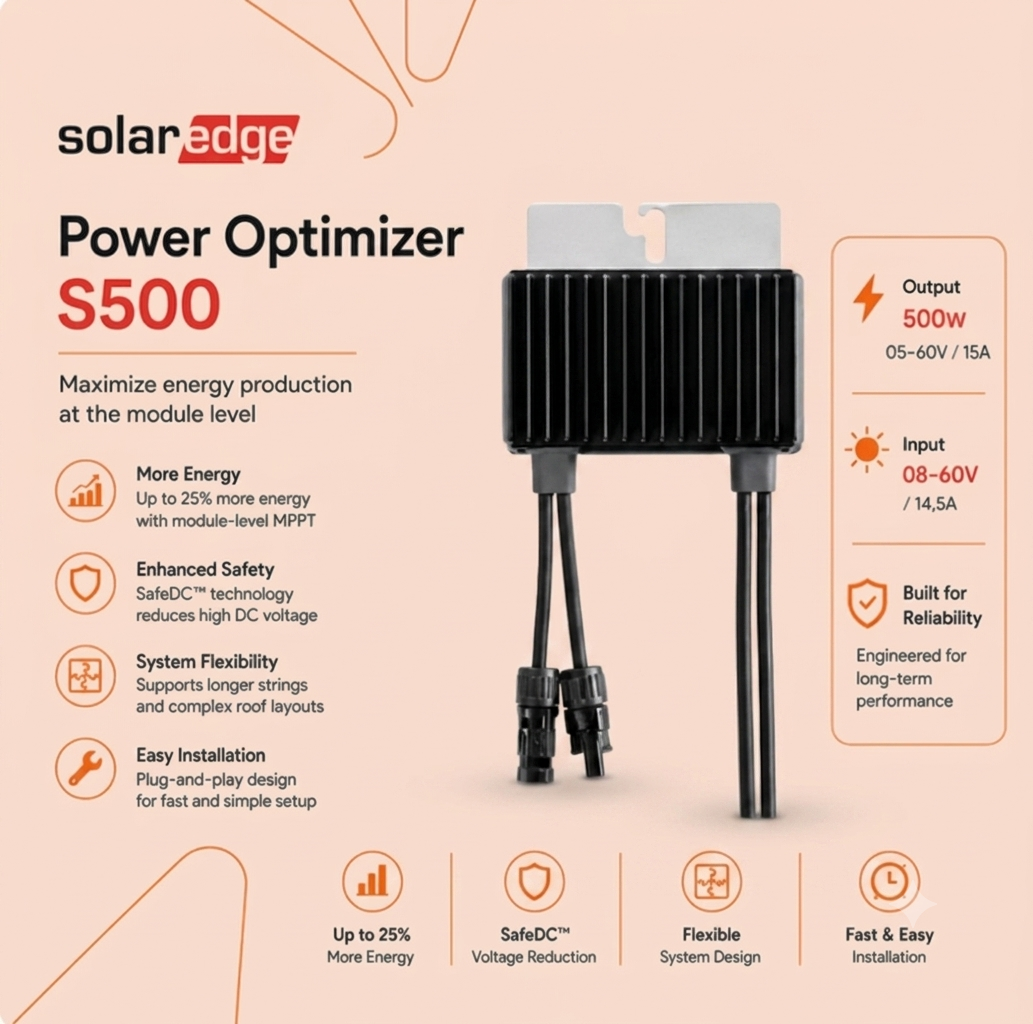

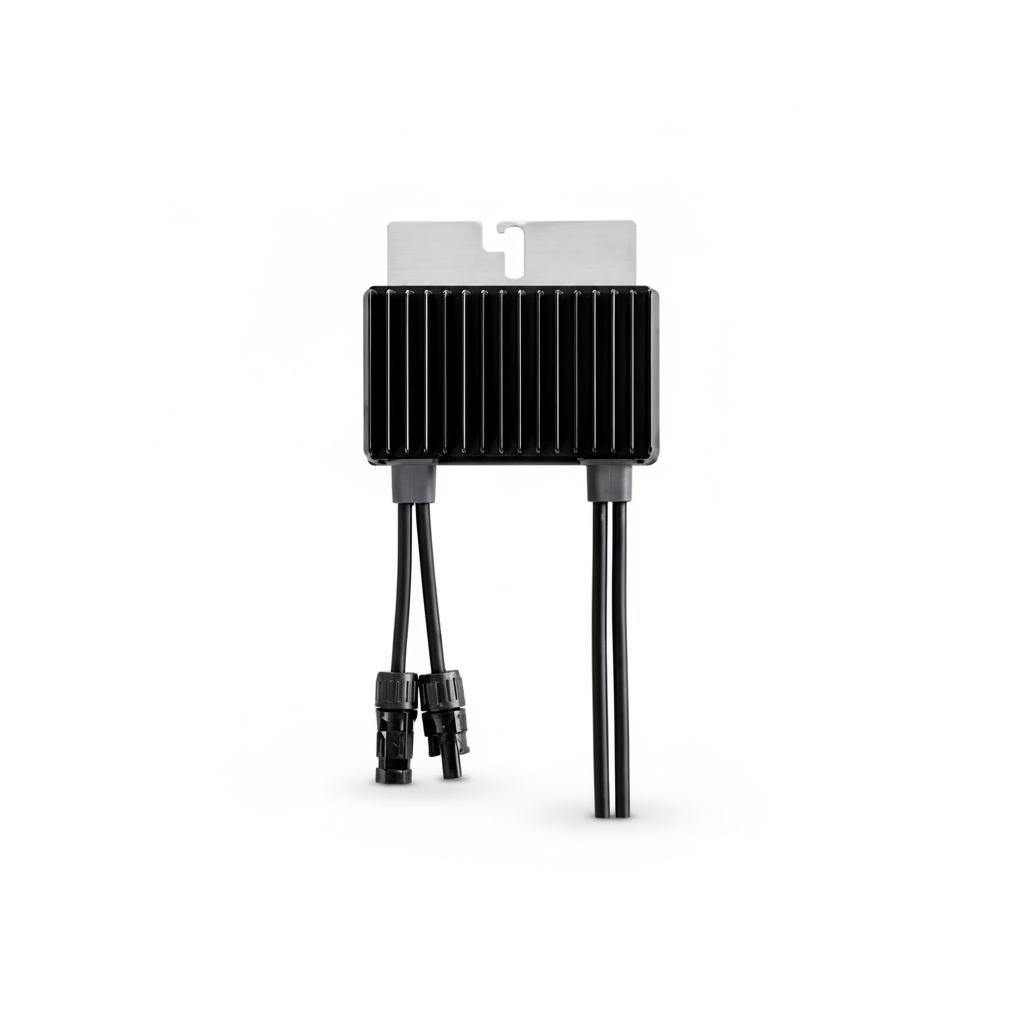

SolarEdge Power Optimizer - Output 500W/05-60V/15A - Input 08-60V/14,5A

In stock - 32 items available
SKU: S500-1GM4MRM

The SolarEdge Power Optimizer is a compact DC-to-DC converter designed to optimize the power output of individual solar modules within a string array. Its primary function is to perform module-level Maximum Power Point Tracking (MPPT) to eliminate string-level power mismatch losses caused by shading, soiling, or aging. The main technical benefit is its ability to increase overall energy yield by up to 25% while providing real-time data monitoring and a native rapid shutdown protocol for enhanced safety.

Power Optimizer SolarEdge
Item-No: F250E1
GTIN: 0847529013757
Manufacturer-No: S500-1GM4MRM
Product-Weight: 0.65 kg (655 grams net weight)
Shipping info: Paket (Parcel)
Regular price €49,00 inc. VAT
Price excluding VAT €40,83 excl. VAT

SolarEdge Power Optimizer - Output 500W/05-60V/15A - Input 08-60V/14,5A

Expert advice on solar cells

Expert advice on solar cells

Do you have any questions? We are ready to help you.

Product details

The manufacturer states that this optimizer must be securely attached to the module rail or frame using the provided mounting hardware. Featuring an IP68-rated enclosure, it is fully optimized for outdoor installations under the solar panels, but must be kept clear of direct water accumulation points. Proper boundary gaps should be maintained during wire routing to prevent cables from dragging on harsh roof surfaces.

This hardware dynamically tracks the peak power point of its assigned module and conditions the DC output voltage and current to match string requirements. It works in unison with a central SolarEdge inverter, bypassing underperforming modules without pulling down the efficiency of the entire circuit. It transmits module-level diagnostic and performance telemetry back to the monitoring system via Power Line Communication (PLC) over the existing DC cables. The module operates reliably within a wide ambient temperature envelope from -40°C to +85°C. While it does not connect to the utility grid directly, it complies with grid safety mandates by responding instantly to inverter-driven commands during grid anomalies. In a grid outage or shutdown scenario, it triggers the SafeDC protocol to drop the output voltage to a safe 1 Volt per module to safeguard maintenance personnel.

Caution

Logistics Transport Category Standard Industrial Photovoltaic Components
Dangerous Goods Description Non-hazardous commercial electrical hardware; solid-state switches
Integrated Safety Devices / Protection SafeDC 1V Rapid Shutdown, Input/Output Over-Current Protection
Overvoltage / Theft / Specific Feature Protection Module-Level Arc Fault Detection (AFCI), Reverse Polarity Protection
Core Operational Range (Current/Voltage/Frequency) Output: 15 A Max / 5-60 Vdc | Input: 14.5 A Max / 8-60 Vdc
Net Product Weight (kg) 0.65 kg
Packaging Material Type Recyclable corrugated cardboard master boxes with protective dividers
Protection Degree Class IP68 / NEMA6P (Maximum moisture and dust protection)

Downloads

No Danish downloads available.

Technical details

Max Rated Power 500 W
Input Voltage Range 8 V - 60 Vdc
Max Input Current (Isc) 14.5 A
Output Voltage Range 5 V - 60 Vdc
Max Output Current 15 A
Safety Output Voltage 1 Vdc (SafeDC Active)
Manufacturer SolarEdge Technologies Ltd.
Item Name SolarEdge DC-to-DC Power Optimizer 500W (60V Version)
Category Power Optimizers / DC-DC Converters
Platform Support SolarEdge Monitoring Portal & SetApp
Gross Weight 0.80 kg (Single Unit)
Box Dimensions Standard Multi-Pack Carton
Inclusions 1x Optimizer, Connected Cables, 1x Mounting Bolt
Net Weight 0.65 kg
Physical Dimensions 129 mm x 150 mm x 40 mm (Approx)
Cooling Type Passive natural convection (Fanless)
Warranty Provider Name SolarEdge Technologies
Standard Duration 25 Years
