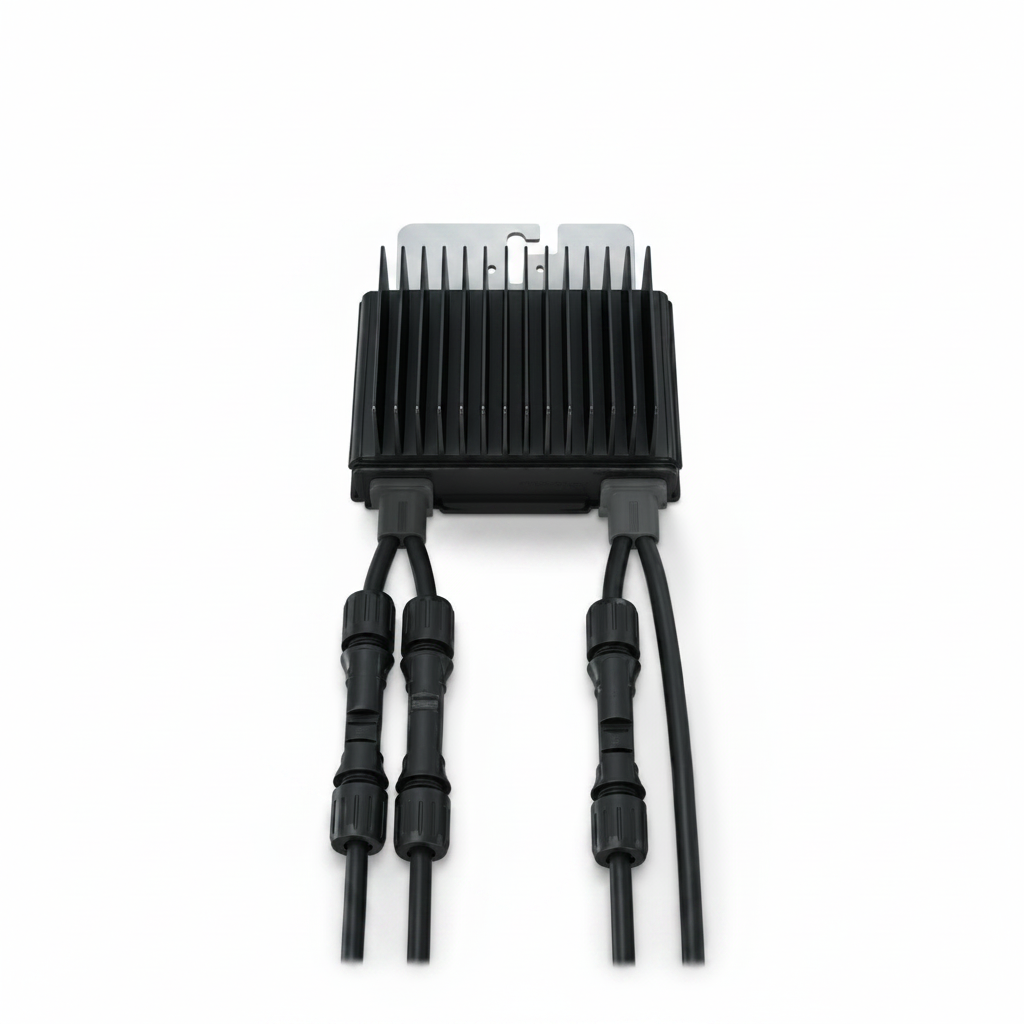

SolarEdge Power Optimizer - Output 1000W/5-80V/18A - Input 12,5-125V/15A
Item-No:
F250E3
GTIN:
0847529014167
Manufacturer-No:
S1000-1GMXMBT
Product-Weight:
1.05 kg (1050 grams net weight)
Shipping info:
Paket (Parcel)
Regular price
€59,00
inc. VAT
Price excluding VAT
€49,17
excl. VAT
Couldn't load pickup availability
SolarEdge Power Optimizer - Output 1000W/5-80V/18A - Input 12,5-125V/15A
Product details
Caution
| Logistics Transport Category | Commercial Solar Photovoltaic Power Electronics |
| Dangerous Goods Description | Non-hazardous industrial electrical hardware; solid-state conversion circuits |
| Integrated Safety Devices / Protection | SafeDC 1V Automated Rapid Shutdown, Input/Output Over-Current Protection |
| Overvoltage / Theft / Specific Feature Protection | Module-Level Arc Fault Detection (AFCI), Reverse Polarity Protection, Input Voltage Clamping |
| Core Operational Range (Current/Voltage/Frequency) | Output: 18 A Max / 5-80 Vdc | Input: 15 A Max / 12.5-125 Vdc |
| Net Product Weight (kg) | 1.05 kg |
| Protection Degree Class | IP68 / NEMA6P (Maximum dust ingress and outdoor moisture protection) |
Technical details
| Max Rated Power | 1000 W (Up to 1100W module STC compatibility) |
| Input Voltage Range | 12.5 V - 125 Vdc |
| Max Input Current (Isc) | 15 A |
| Max Output Current | 18 A |
| Peak Efficiency | 99.5% |
| Safety Output Voltage | 1 Vdc (SafeDC Active) |
| Manufacturer | SolarEdge Technologies Ltd. |
| Item Name | SolarEdge Commercial S-Series / P-Series Power Optimizer |
| Category | Commercial DC-DC Converters / MLPE |
| Platform Support | SolarEdge Monitoring Portal & SetApp Mobile App |
| Gross Weight | 1.25 kg (Single Unit Equivalent) |
| Box Dimensions | Master Box containing standard 10 or 20-piece configurations |
| Inclusions | 1x 1000W Optimizer, Connected MC4 Input/Output Cables, 1x Mounting Bolt Assembly |
| Net Weight | 1.05 kg |
| Physical Dimensions | 129 mm x 162 mm x 59 mm |
| Cooling Type | Passive natural convection cooling (Fanless design with thermal compound) |
| Warranty Provider Name | SolarEdge Technologies Hardware Warranty Group |
| Standard Duration | 25 Years |
